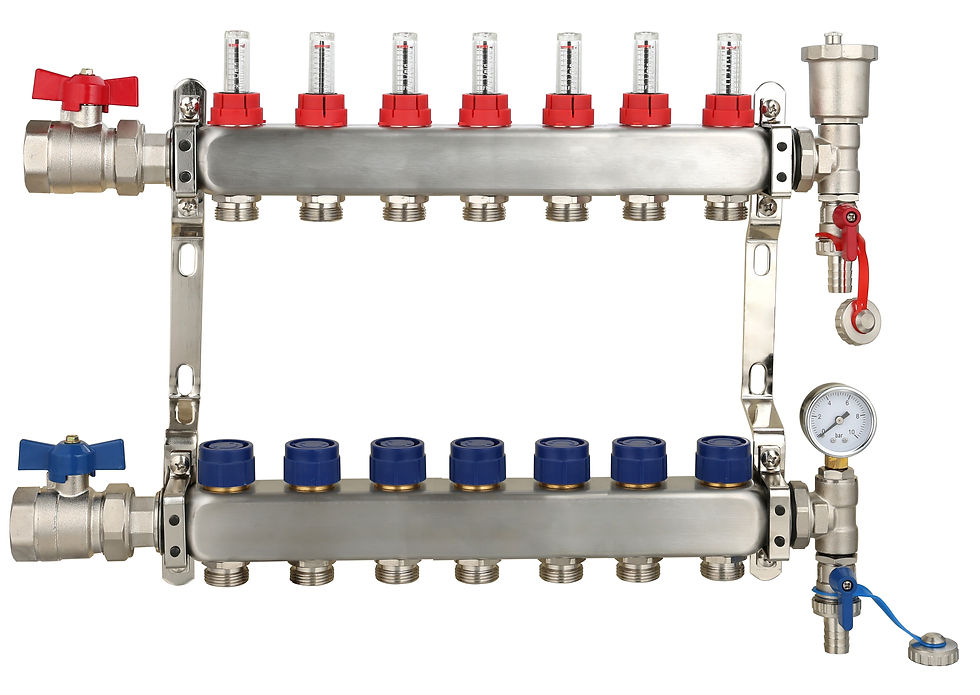

Our underfloor heating manifold assemblies offer easy integration of heating flow and return to floor heating loops.

Flow manifold complete with:
Ball valve
Flow gauges
End piece with fill valve
Auto air vent
Cone connectors

Return manifold complete with:
Ball valves
Control valves
End piece with manual air vent
Cone connectors

Both manifolds are connected to an offset wall bracket which allows the underfloor heating flows to pass behind the return manifold. The heating flow and return can be connected to the ball valves on the underfloor heating manifold if using a heat pump or another regulated low temperature supply.

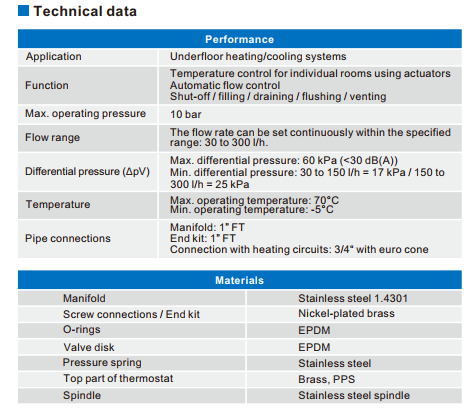

Stainless steel manifold for 2 up to 12 heating circuits for distribution, shut off and balancing of the heating/cooling water flow of radiant panel heating/cooling systems in compliance with BSEN 1264-4 . The flow rate for each heating circuit can be continuously adjusted via a regulatingshut-off valve integrated in the return circuit .
 M30x 1 .5valveconnectionforallcommonactuators(optional accessory)
 Precise adjustment even at high flow rates
 Premium quality O-ring valve gaskets (EPDM) ensure permanent ease of operation and highdurability
 1" MT flat-sealing connections to heat generator , connection to heating circuits via ¾" eurocone for clamp ring screw connections
 Includes an end set with 3/4” swivel connection for shut-off, filling , draining and flushing
 Ready-mounted on wall bracket , low-noise pipe clamps in accordance with DIN 4109
 A wide range of supplementary systems , such as pump groups , hydraulic control units formanifolds , heat interface units and many more.

We supply cone connectors for 16mm pipe as standard but we can supply them for 20mm pipe at no additional cost. If you want a size other than 16mm please specify when ordering.
